Energy-efficient, cost-effective 10GbE switches for modernizing and scaling network infrastructure
The N4000 switch series offers a power-efficient and resilient 10 Gigabit Ethernet (10GbE) switching solution with support for 40GbE uplinks for advanced Layer 3 distribution for offices and campus networks. The N4000 switch series has high-performance capabilities and wire- speed performance utilizing a non-blocking architecture to easily handle unexpected traffic loads. The N4000 series includes dual internal hot- swappable 80PLUS-certified power supplies for high availability and power efficiency. The switches offer simple management and scalability via flexible user port stacking at 10Gbps or 40Gbps. The high-availability stacking architecture allows management of up to 12 switches from a single IP address.
Up to 64 10GbE ports (N4064 and N4064F) using breakout cables on the QSFP ports.

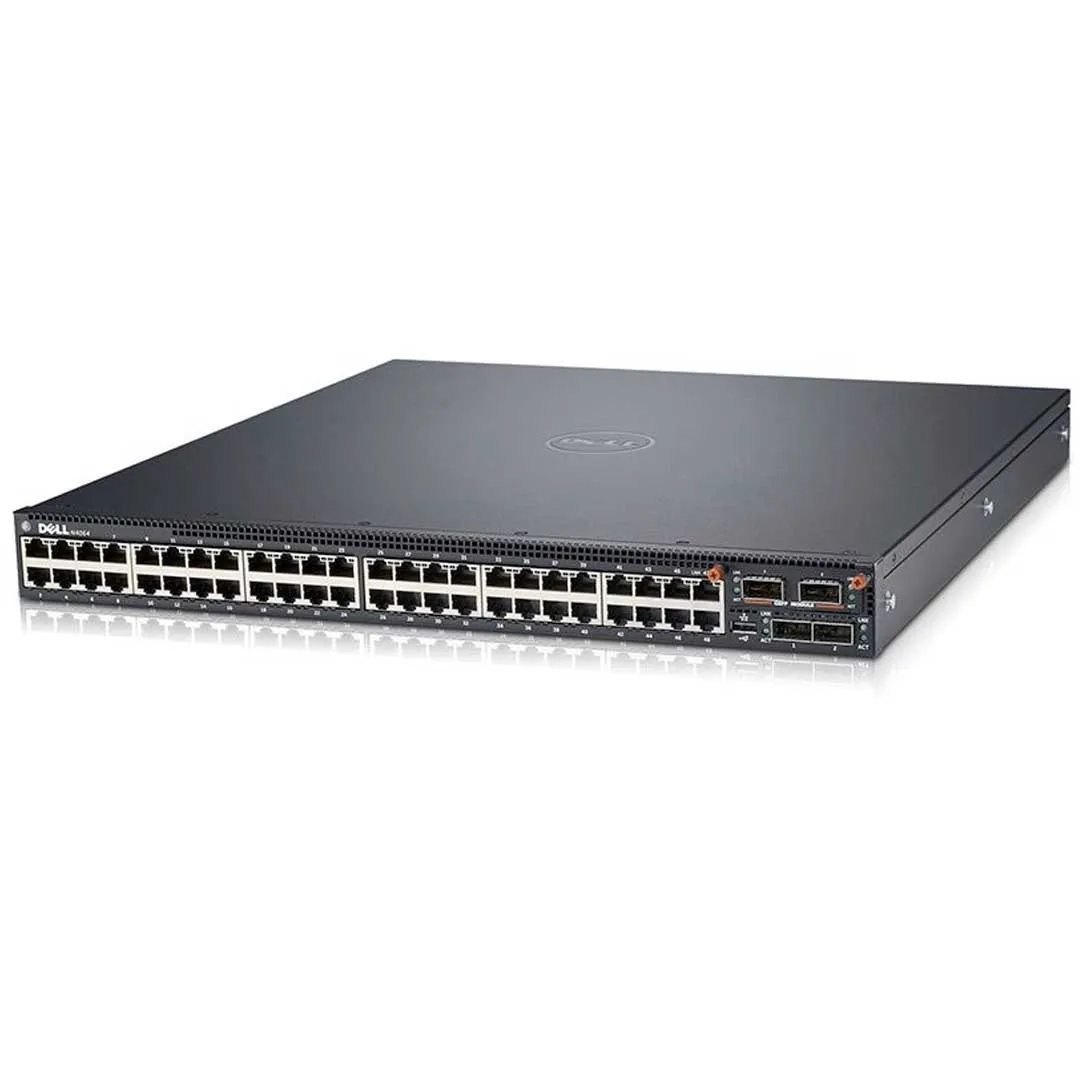

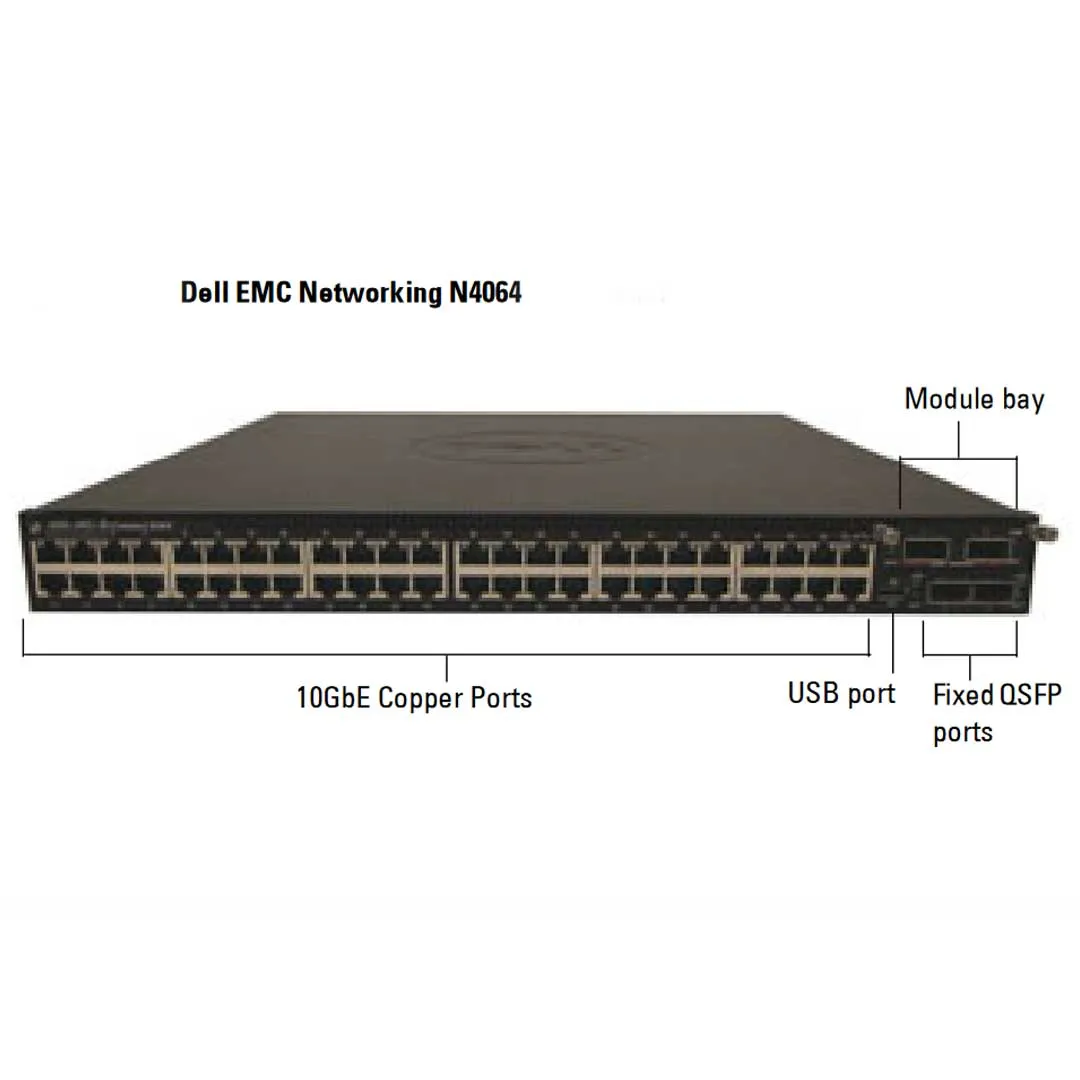

N4064 Features:
- 48x 10GbE RJ45 auto-sensing (10Gb/1Gb/100Mb) fixed ports,
- 2x 40GbE QSFP fixed ports,
- 1x hot swap expansion module bay (Default comes with blank)
-
Options:
- 4-port 10 Gigabit SFP hot swappable module
- 4-port 10 Gigabit Base-T RJ-45 hot swappable module
- 2-port 40 Gigabit QSFP hot swappable module
- 2x redundant 460W PSU included
-
Power Cord Options:
- 125V, 15A, 10 feet, NEMA 5-15/C13
- 250V, 12A, 2 meters, C13/C14
- Country- and region-specific power cord options available
Performance
- MAC addresses: 131,072
- Comes with Auto-MDI/MDIX
- Static routes: 1,024 (IPv4)/1,024 (IPv6)
- Dynamic routes: 8,160 (IPv4)/4,096 (IPv6)
- Switch fabric capacity: 1.28Tbp
- Forwarding rate: 952Mpps
- Line-rate Layer 2 switching: All (non-blocking)
- Line-rate Layer 3 routing: All (non-blocking)
- Flash memory: 256MB
- VLAN routing interfaces: 128
- VLANs supported: 4,094
- Max VLAN interfaces with ACLs applied: 24
- User port stacking up 320Gbps on N4064 (full duplex)
Quad-Port SFP (QSFP) Uplink Module
N4000 -QSFP — 2 x 40G QSFP port module - defaults to 2 x 40G
The QSFP module supports features four ports that support 10G SFP transceivers. The QSFP module supports the following features:
- Four 10G ports with quad-breakout/QBO cable or one 40G port
- Front-panel port status LEDs
Quad-Port SFP Uplink Module
N4000 -SFP — 4 x SFP port module - defaults to 4 x 10G mode
The N4000-SFP module features four SFP ports, each providing the following features:
- SFP optical interfaces
- SFP copper twinax interface
- Front-panel port status LEDs
10GBASE-T Copper Uplink Module
N4000 -10GBT — 4 x 10GBASE-T ports module - defaults to 4 x 10G mode
The 10GBASE-T copper module features four copper ports that can support 10GbE/1GbE/100MbE switching and provides following features:
- Complies with IEEE802.3z, IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3an
- Four 10GBASE-T/1GBASE-T/100MBASE-T copper ports.
- Front-panel port status LEDs
