Energy-efficient, cost-effective 1GbE switches for modernizing and scaling network infrastructure

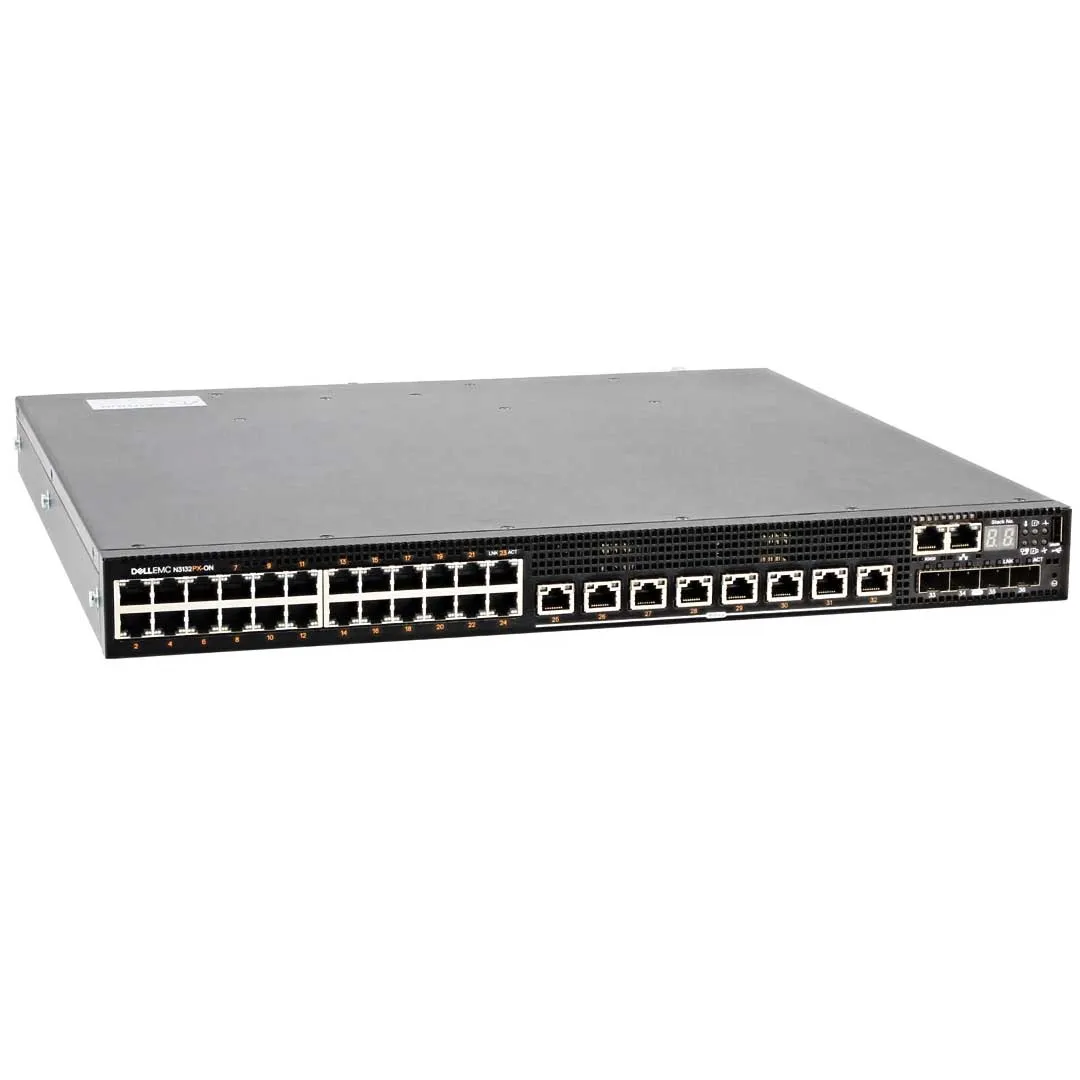

The N3132PX-ON is a high-performance network switch designed for enterprise-level applications. With 32 ports, this switch provides a high level of connectivity, allowing for seamless data transmission across multiple devices.

The switch features 24 RJ45 10/100/1000Mb auto-sensing PoE 60W ports, which provide power and connectivity to PoE-enabled devices such as IP phones, wireless access points, and security cameras. Additionally, the switch also features 8 RJ45 10/100/1000/2500/5000Mb auto-sensing PoE 60W ports, which provide even higher speeds for devices that require faster connectivity.

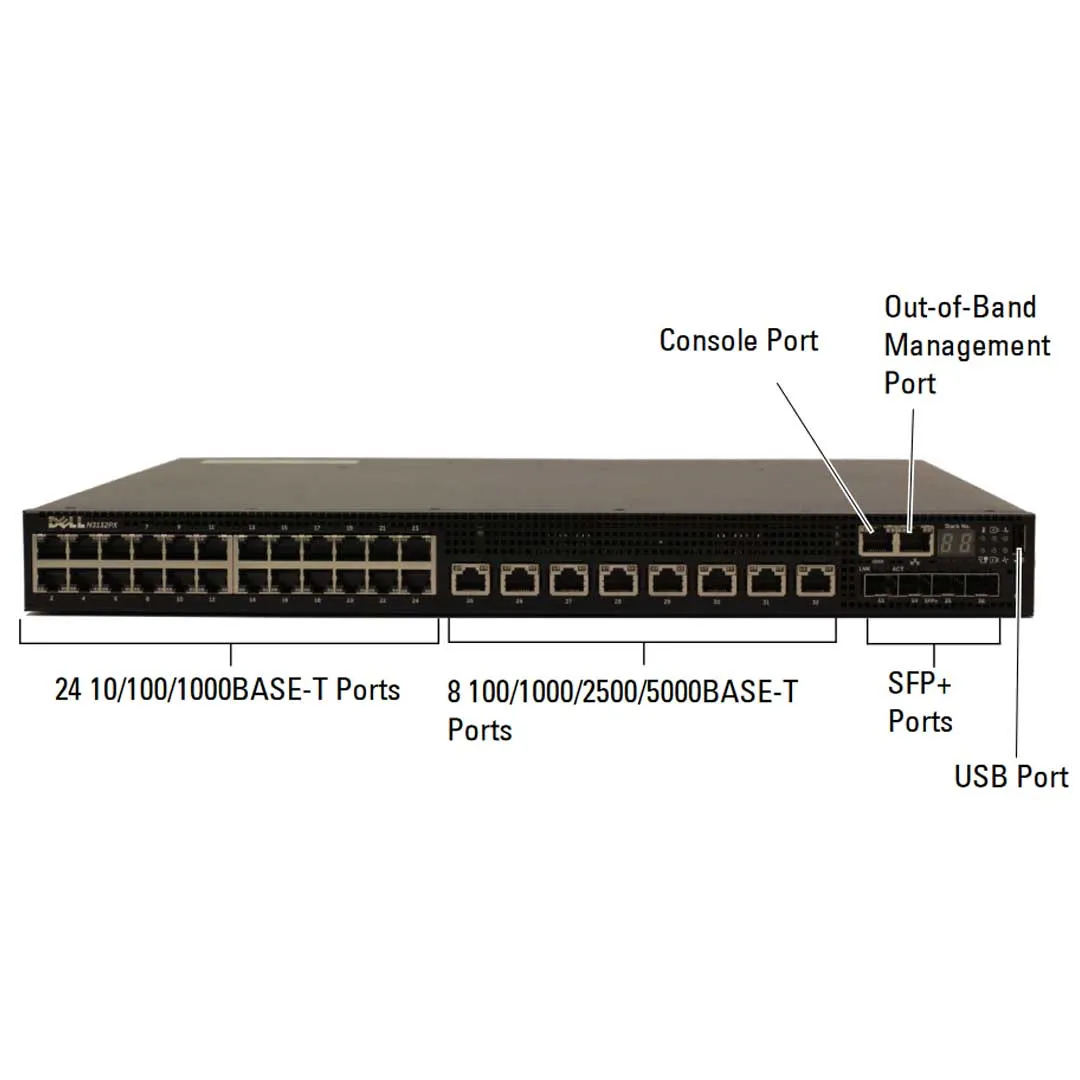

For the N3132PX-ON switch ports 1-24 are 1G interfaces, ports 25-32 are Multi-Gig interfaces, ports 33-36 are 10G interfaces and ports 37-38 are 40G interfaces (when a QSFP or a Stacking module is inserted in the back of the switch).

N3132PX-ON Features:

• 32 Ports
• 24 RJ45 10/100/1000Mb auto-sensing PoE 60W ports
• 8 RJ45 10/100/1000/2500/5000Mb auto-sensing PoE 60W ports
• Four integrated 10GbE SFP ports
• One hot-swap expansion module bay, for two stacking ports or two QSFP 40GbE ports

  • Options:
  • 2-port 10 Gigabit BASE-T RJ-45 hot swappable uplink module
  • 2-port 10 Gigabit SFP hot swappable uplink module
  • 2-port 40 Gigabit QSFP hot swappable module (N3132PX-ON only)
  • Stacking module (N3132PX-ON only)
• 1x 1100W AC hot swappable with V-Lock,
  (Dual hot-swap power supply bays (optional power supply available))
  • Power Cord Options:
  • C15 to NEMA 5-15, 2M (C15 for POE N-Series only)

Performance

• MAC addresses: 32K
• CPU memory: 2GB for N3132PX-ON
• Comes with Auto-MDI/MDIX
• Static routes: 1,024 (IPv4)/1,024 (IPv6)
• Dynamic routes: 8,160 (IPv4)/4,096 (IPv6)
• Switch fabric capacity: 328Gbps
• Forwarding rate: 428Mpps
• Line-rate Layer 2 switching: All (non-blocking)
• Line-rate Layer 3 routing: All (non-blocking)
• Flash memory: 512MB
• Packet buffer memory: 5MB
• VLAN routing interfaces: 128
• VLANs supported: 4,094
• Max VLAN interfaces with ACLs applied: 24

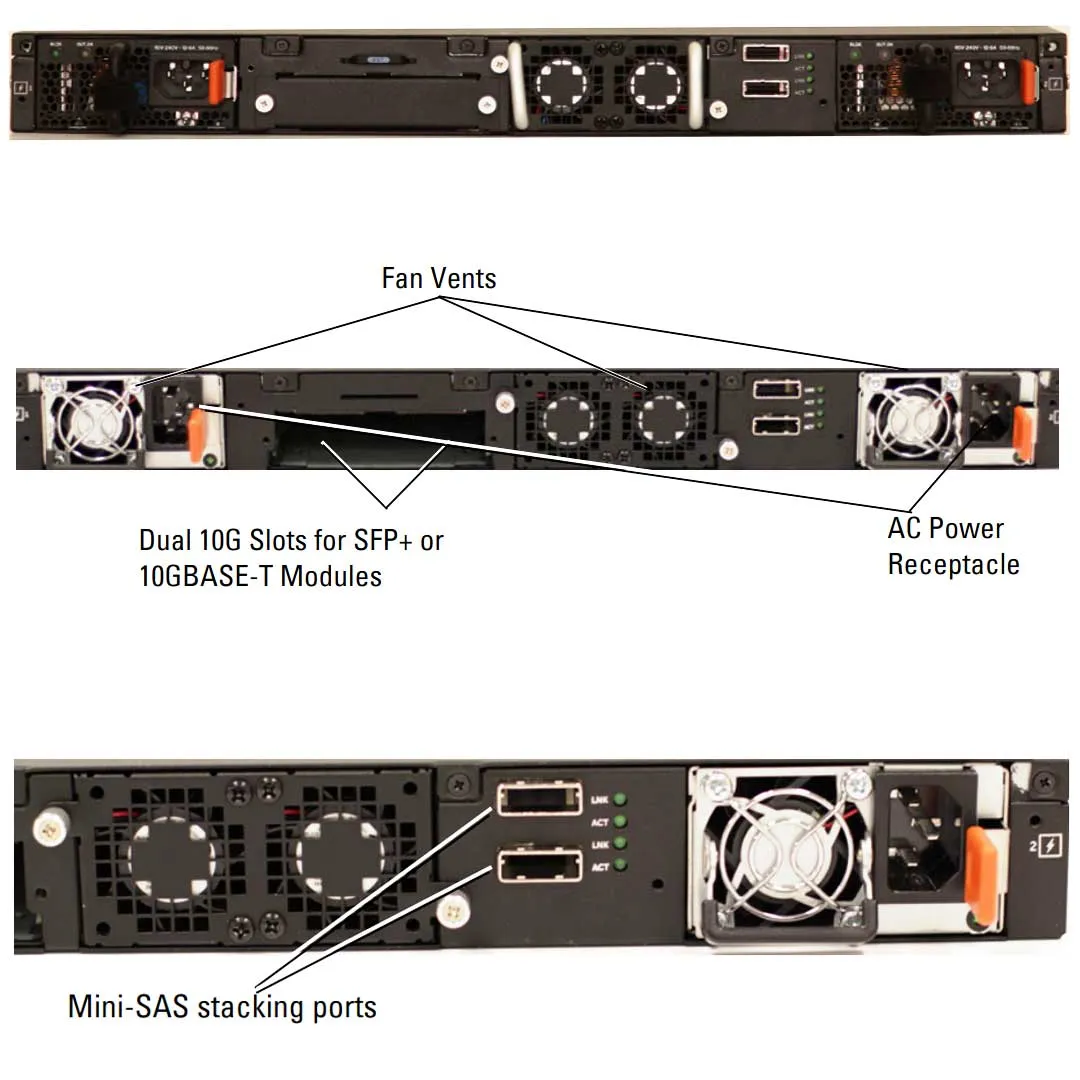

• 2 rear stacking ports (21Gbps) supporting up to 84Gbps (full duplex) (N3132PX-ON requires optional stacking module)
• Select N3000 switches now support the Open Network Install Environment (ONIE), enabling installation of alternate network operating systems.

Modernize network architectures

The N3132PX-ON also includes four integrated 10GbE SFP ports, which offer high-speed connectivity for servers and storage devices. The switch also features one hot-swap expansion module bay, which can be used to add two stacking ports or two QSFP 40GbE ports.

To further enhance the switch's capabilities, there are several optional modules available, including a 2-port 10 Gigabit BASE-T RJ-45 hot-swappable uplink module, a 2-port 10 Gigabit SFP hot-swappable uplink module, and a 2-port 40 Gigabit QSFP hot-swappable module (available only for the N3132PX-ON).

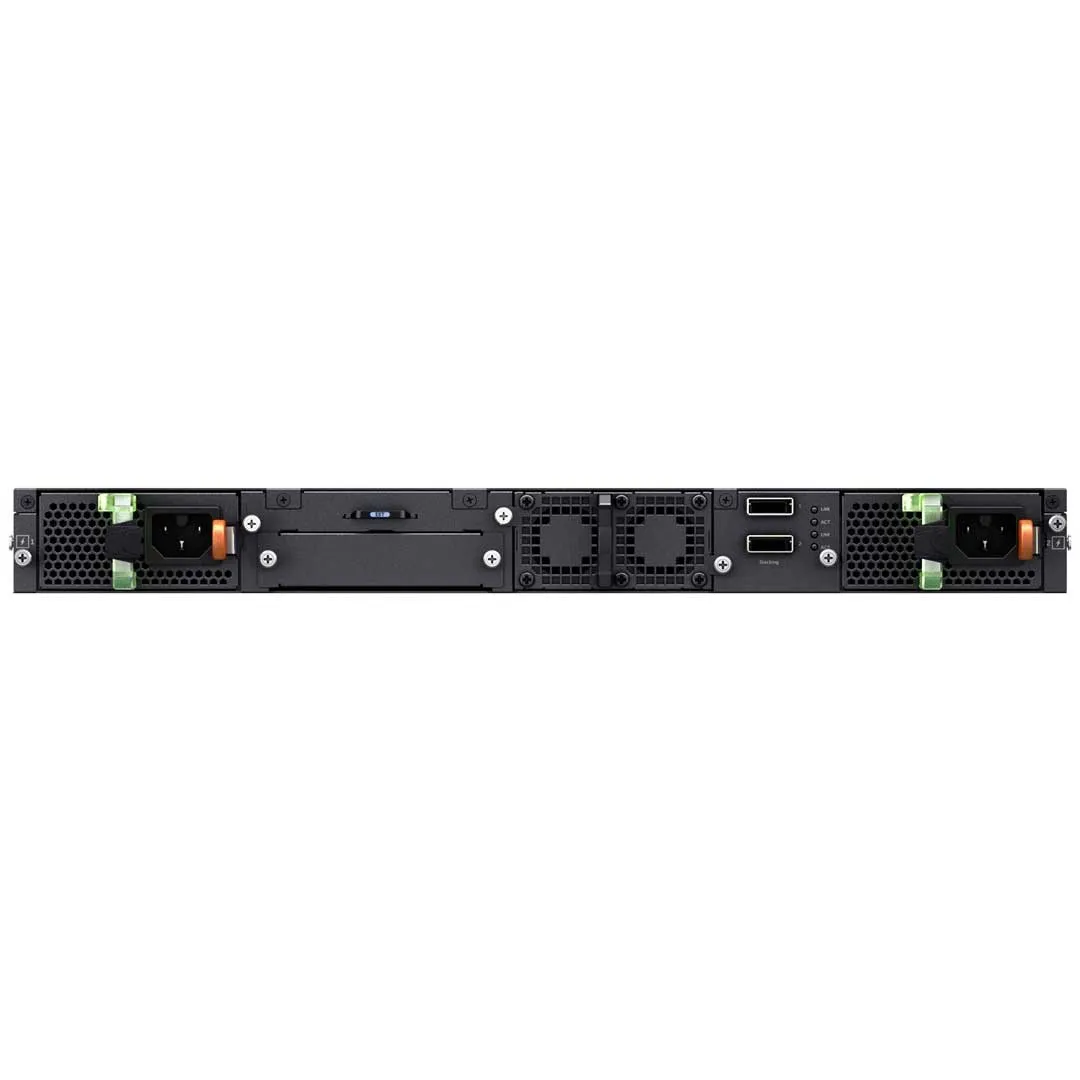

Power

The N3132PX-ON also includes one 1100W AC hot-swappable power supply with V-Lock, and there are dual hot-swappable power supply bays available for optional power supply redundancy. The switch comes with a C15 to NEMA 5-15, 2M power cord option (C15 for POE N-Series only).
