Energy-efficient, cost-effective 1GbE switches for modernizing and scaling network infrastructure

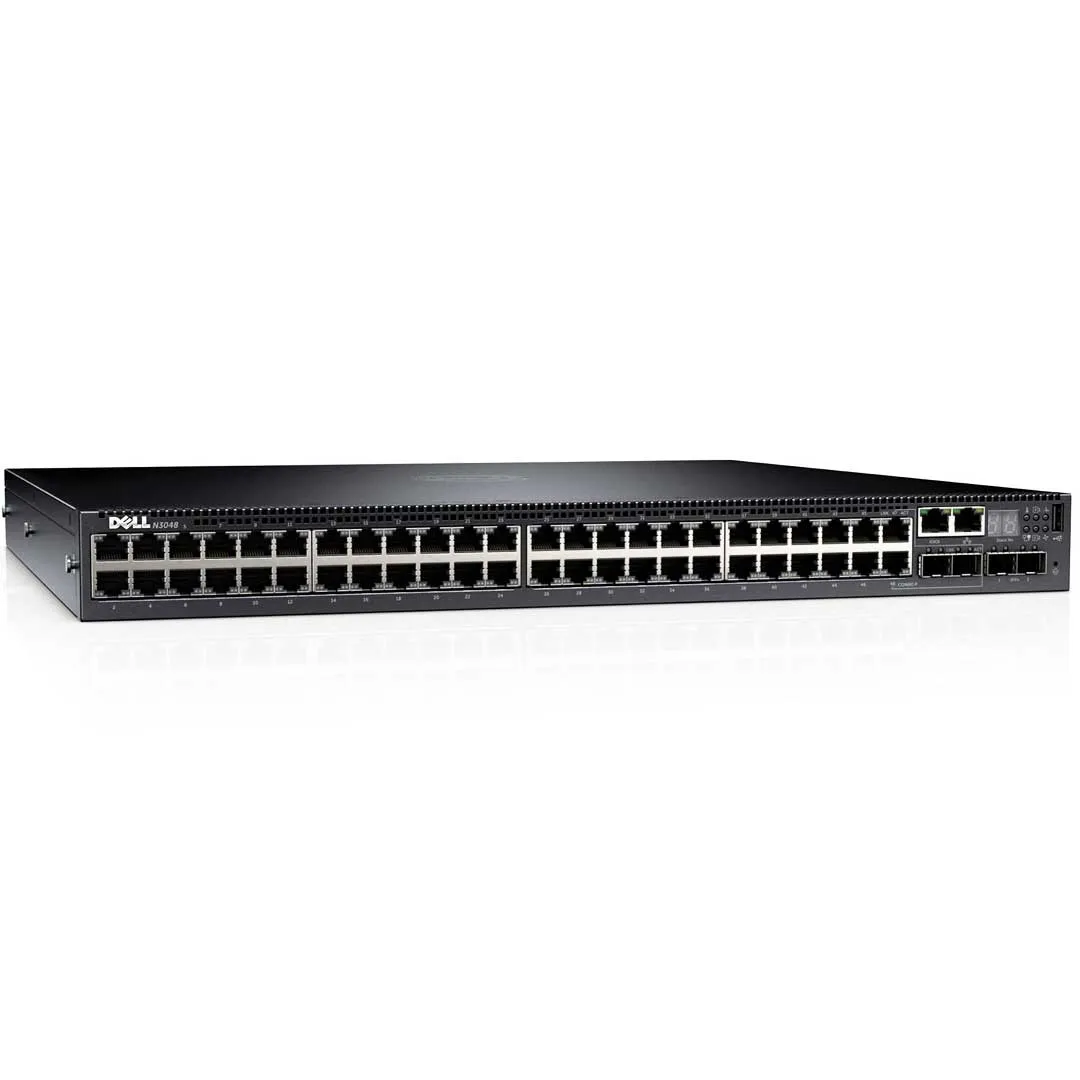

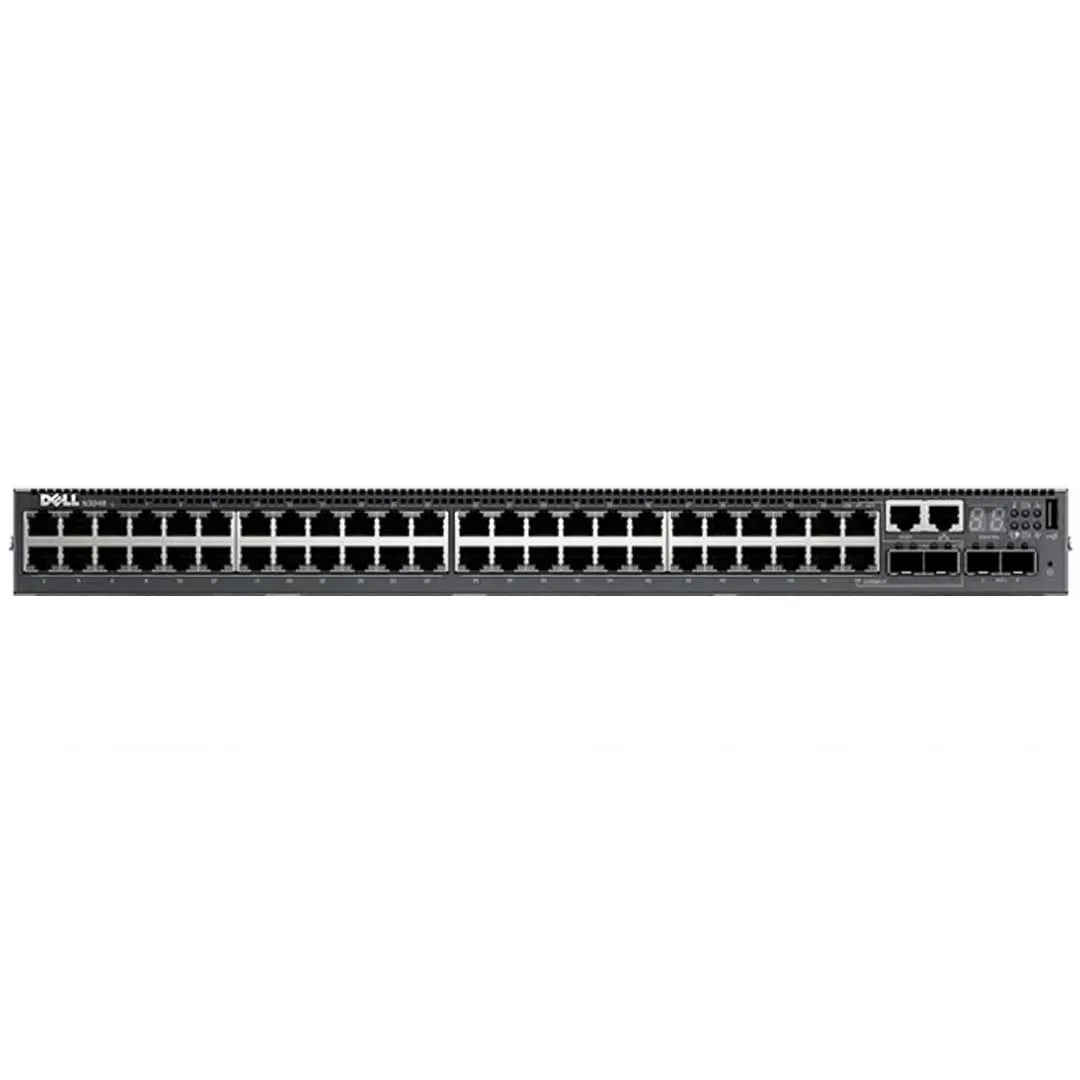

The Dell N3048ET-ONis a powerful and flexible switch that is designed to meet the needs of modern networks. It features 48 RJ45 10/100/1000Mb auto-sensing ports that can automatically detect the speed and duplex of connected devices, providing fast and reliable connectivity for a variety of network devices.

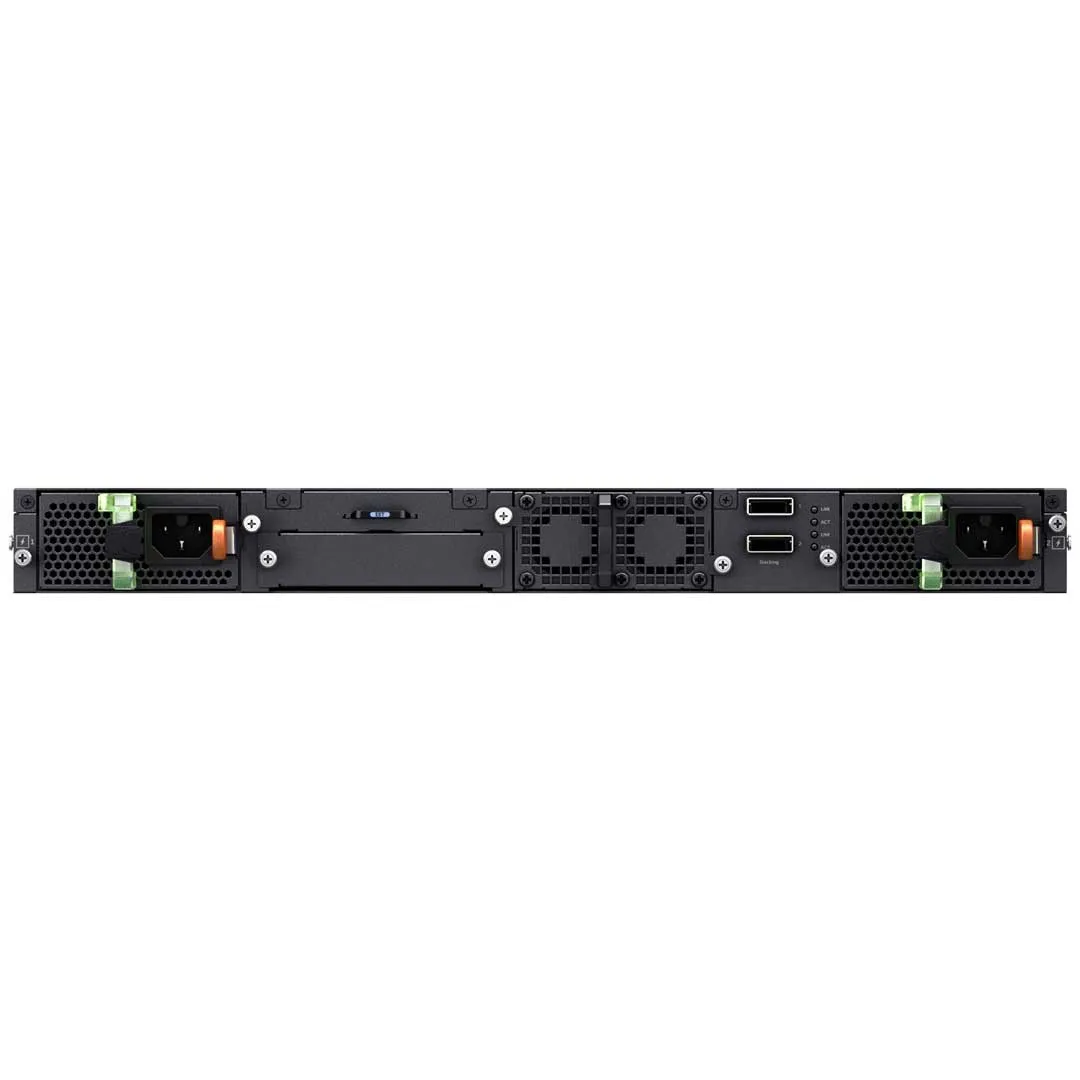

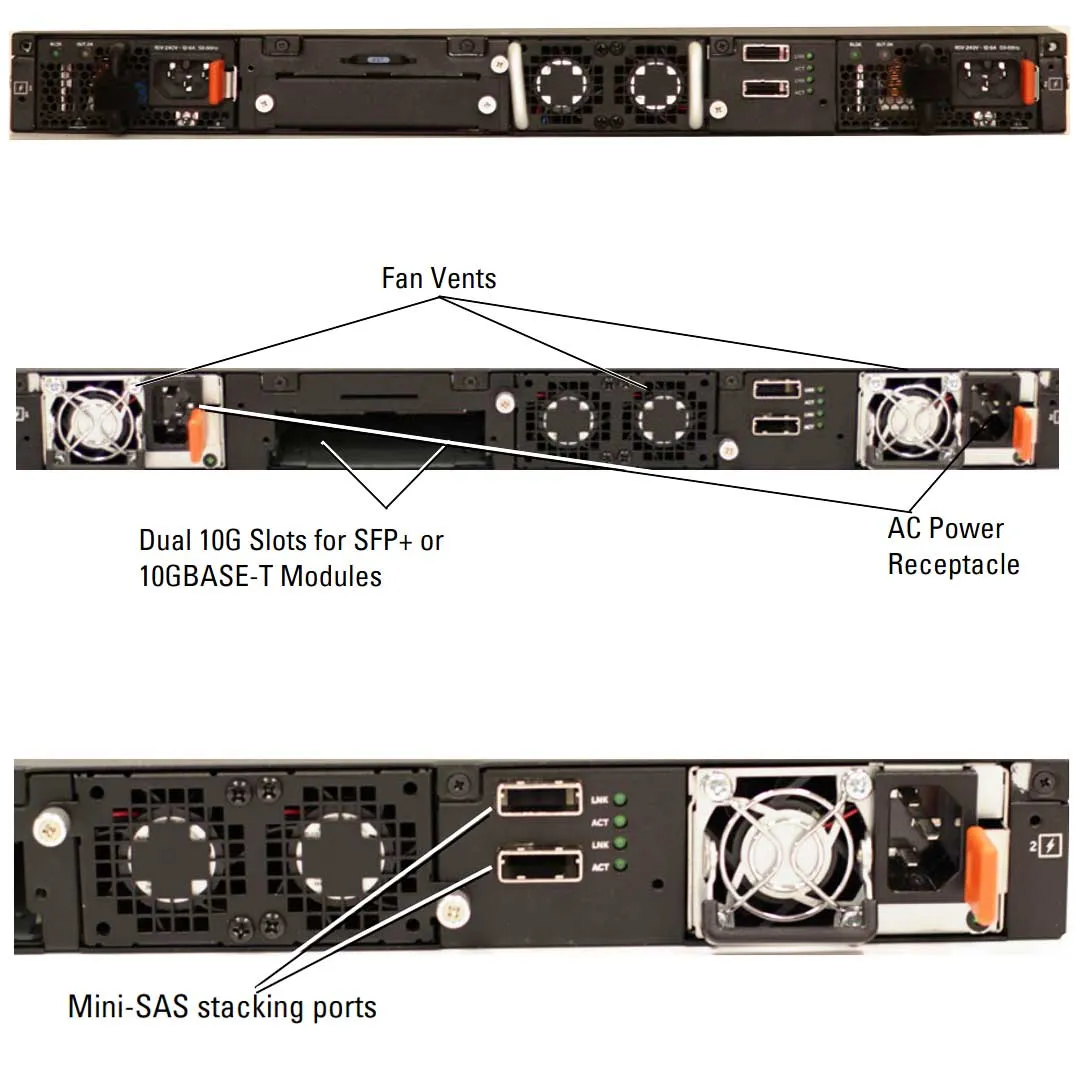

The N3048ET-ONalso includes two rear stacking ports (21Gbps) that support up to 84Gbps (full duplex) of stacking bandwidth. This allows multiple switches to be connected together to create a larger virtual switch, providing increased capacity and redundancy for critical network services. Overall, the Dell N3048 is a high-performance switch that offers a range of powerful features for modern networks.

N3048ET-ON Features:

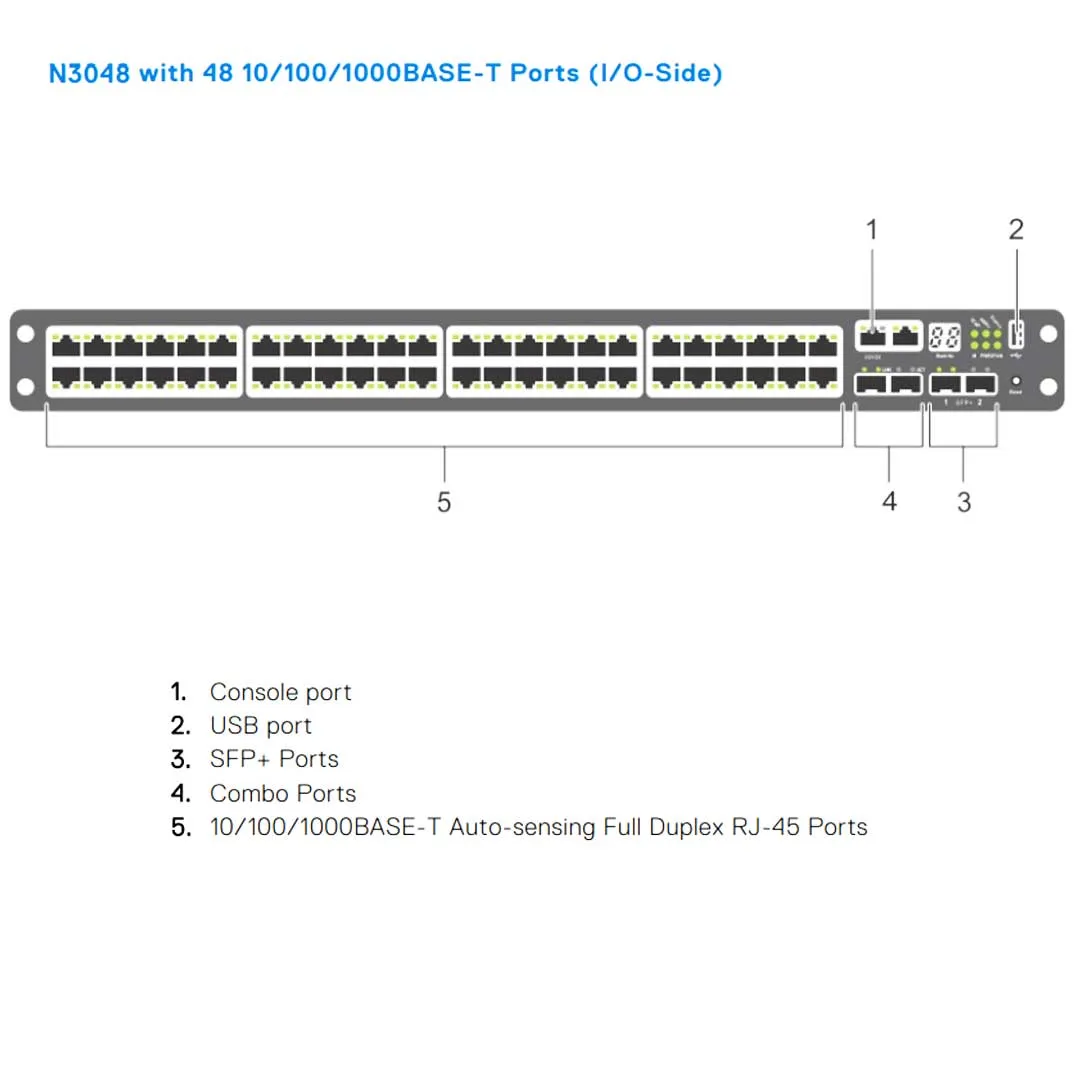

• 48 RJ45 10/100/1000Mb auto-sensing ports
• 2G memory and 1Gb of flash
• Two integrated 10GbE SFP ports
• Two GbE combo media ports for copper or fiber flexibility
• 2 rear stacking ports (21Gbps) supporting up to 84Gbps (full duplex)
• 1x hot swap expansion module bay (Default comes with blank)
  • Options:
  • 2-port 10 Gigabit BASE-T RJ-45 hot swappable uplink module
  • 2-port 10 Gigabit SFP hot swappable uplink module
• 1x 200W AC hot swappable with V-Lock,
  (Dual hot-swap power supply bays (optional power supply available))
  • Power Cord Options:
  • C13 to NEMA 5-15, 3M
  • C13 to C14, 2M

Performance

• MAC addresses: 32K
• Comes with Auto-MDI/MDIX
• Static routes: 1,024 (IPv4)/1,024 (IPv6)
• Dynamic routes: 8,160 (IPv4)/4,096 (IPv6)
• Switch fabric capacity: 260Gbps (full duplex)
• Forwarding rate: 193Mpps
• Line-rate Layer 2 switching: All (non-blocking)
• Line-rate Layer 3 routing: All (non-blocking)
• Flash memory: 2G memory and 1Gb of flash
• VLAN routing interfaces: 128
• VLANs supported: 4,094
• Max VLAN interfaces with ACLs applied: 24
• Select N3000 switches now support the Open Network Install Environment (ONIE), enabling installation of alternate network operating systems.

Modernize campus network architectures
Modernize campus network architectures with a power-efficient and resilient 1/10GbE switching solution with dense Power over Ethernet Plus (PoE ) and PoE 60W. Select N3000 models offer 24 or 48 ports of PoE , or up to 32 ports of PoE 60W to deliver clean power to network devices such as wireless access points (APs), Voice-over-IP (VoIP) handsets, video conferencing systems and security cameras. For greater interoperability in multivendor networks, N3000 series switches offer the latest open-standard protocols and include technology to interface with Cisco protocol RPVST and devices using CDP.

N3024, N3024F and N3048 switches support two 200-watt field replaceable unit (FRU) power supplies which give full power redundancy for the switch. The N3024, N3024F and N3048 switches offer the V-lock feature for users desiring the need to eliminate accidental power disconnection. The V-lock receptacle on the PSU allows you to use a power cord that has the V-lock feature to create an integral secure locking connection.
