Energy-efficient, cost-effective 1GbE switches for modernizing and scaling network infrastructure

The Dell N3048 is a powerful and flexible switch that is designed to meet the needs of modern networks. It features 48 RJ45 10/100/1000Mb auto-sensing ports that can automatically detect the speed and duplex of connected devices, providing fast and reliable connectivity for a variety of network devices.

The N3048 also includes two rear stacking ports (21Gbps) that support up to 84Gbps (full duplex) of stacking bandwidth. This allows multiple switches to be connected together to create a larger virtual switch, providing increased capacity and redundancy for critical network services. Overall, the Dell N3048 is a high-performance switch that offers a range of powerful features for modern networks.

N3048 Features:

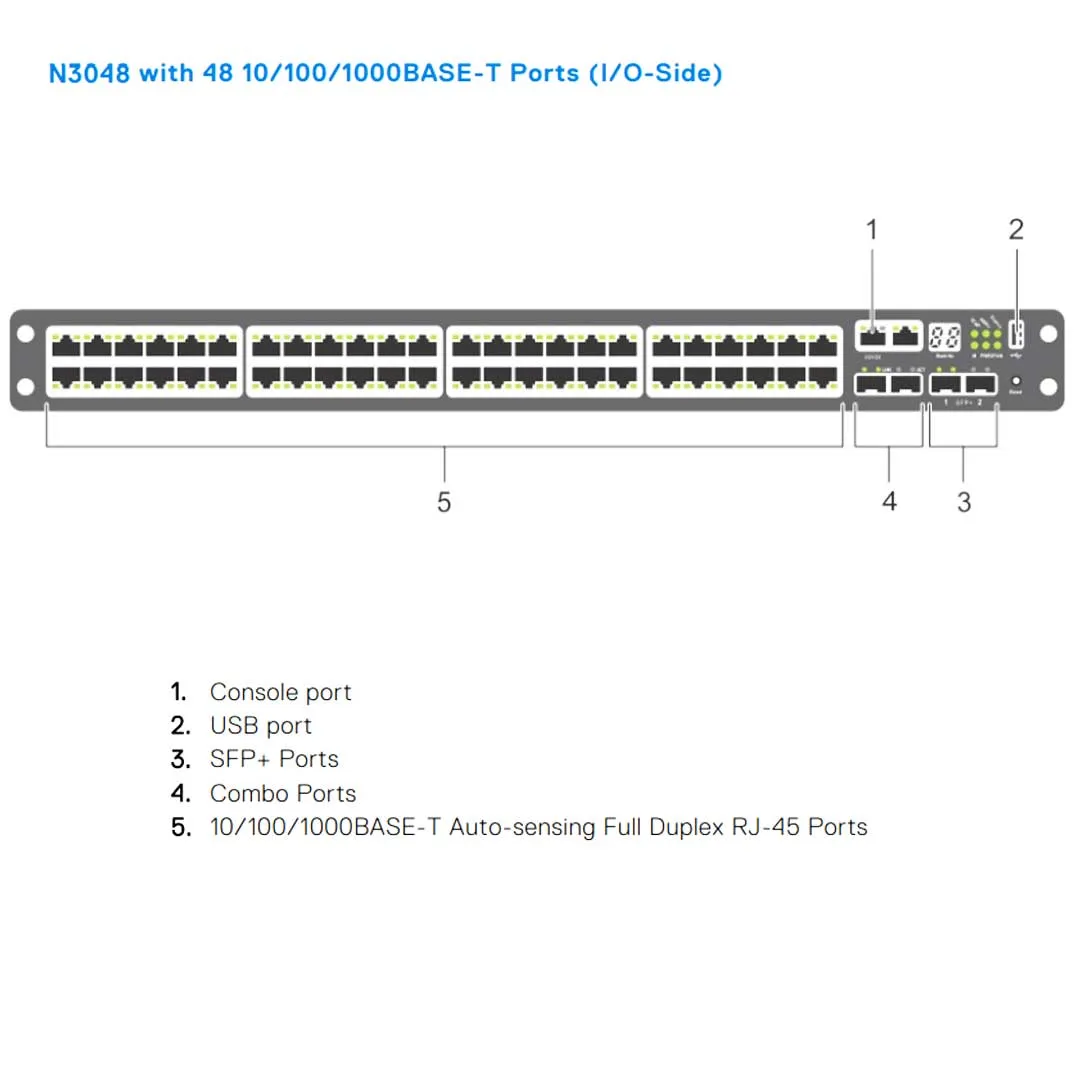

• 48 RJ45 10/100/1000Mb auto-sensing ports
• Two integrated 10GbE SFP ports
• Two GbE combo media ports for copper or fiber flexibility

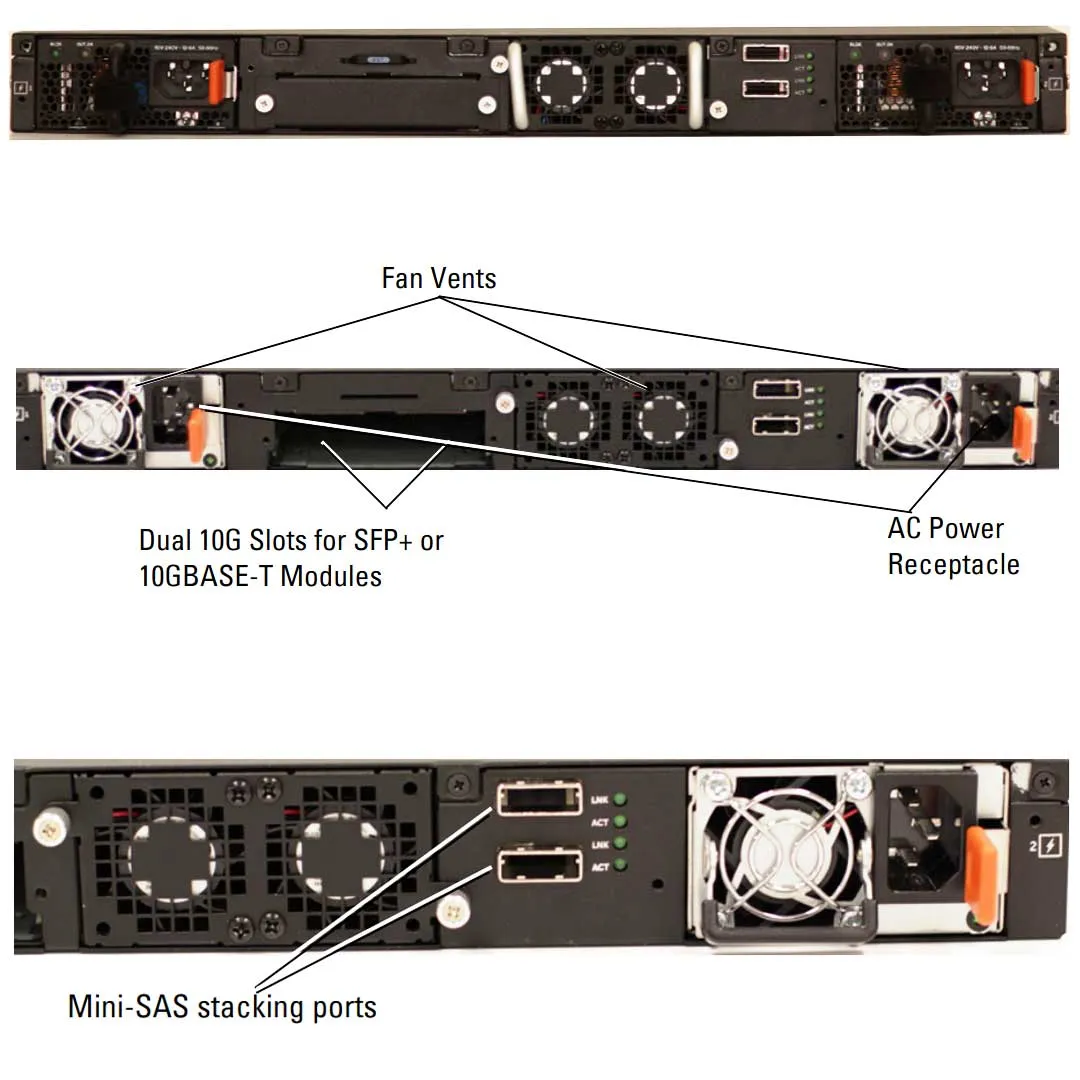

• 2 rear stacking ports (21Gbps) supporting up to 84Gbps (full duplex)
• 1x hot swap expansion module bay (Default comes with blank)
  • Options:
  • 2-port 10 Gigabit BASE-T RJ-45 hot swappable uplink module
  • 2-port 10 Gigabit SFP hot swappable uplink module
• 1x 200W AC hot swappable with V-Lock,
  (Dual hot-swap power supply bays (optional power supply available))
  • Power Cord Options:
  • C13 to NEMA 5-15, 3M
  • C13 to C14, 2M

Performance

• MAC addresses: 32K
• Comes with Auto-MDI/MDIX
• Static routes: 1,024 (IPv4)/1,024 (IPv6)
• Dynamic routes: 8,160 (IPv4)/4,096 (IPv6)
• Switch fabric capacity: 260Gbps (full duplex)
• Forwarding rate: 193Mpps
• Line-rate Layer 2 switching: All (non-blocking)
• Line-rate Layer 3 routing: All (non-blocking)
• Flash memory: 256MB
• VLAN routing interfaces: 128
• VLANs supported: 4,094
• Max VLAN interfaces with ACLs applied: 24
• Select N3000 switches now support the Open Network Install Environment (ONIE), enabling installation of alternate network operating systems.

Modernize campus network architectures
Modernize campus network architectures with a power-efficient and resilient 1/10GbE switching solution with dense Power over Ethernet Plus (PoE ) and PoE 60W. Select N3000 models offer 24 or 48 ports of PoE , or up to 32 ports of PoE 60W to deliver clean power to network devices such as wireless access points (APs), Voice-over-IP (VoIP) handsets, video conferencing systems and security cameras. For greater interoperability in multivendor networks, N3000 series switches offer the latest open-standard protocols and include technology to interface with Cisco protocol RPVST and devices using CDP.

N3024, N3024F and N3048 switches support two 200-watt field replaceable unit (FRU) power supplies which give full power redundancy for the switch. The N3024, N3024F and N3048 switches offer the V-lock feature for users desiring the need to eliminate accidental power disconnection. The V-lock receptacle on the PSU allows you to use a power cord that has the V-lock feature to create an integral secure locking connection.
