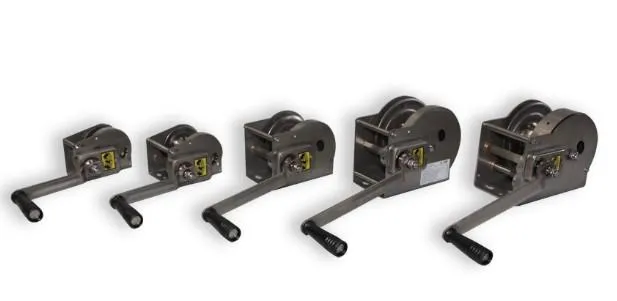

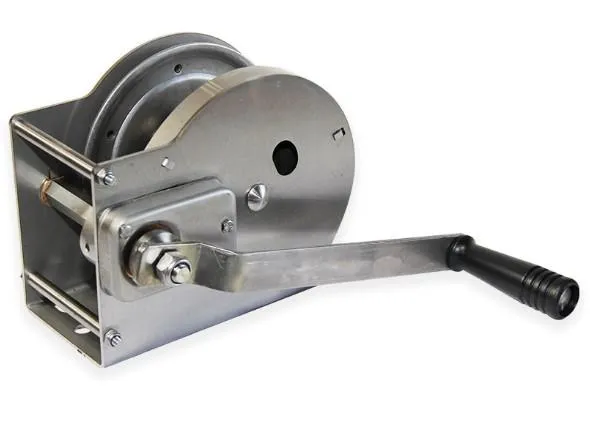

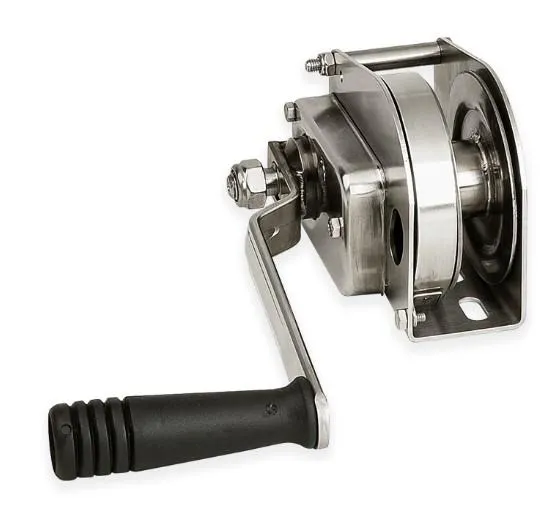

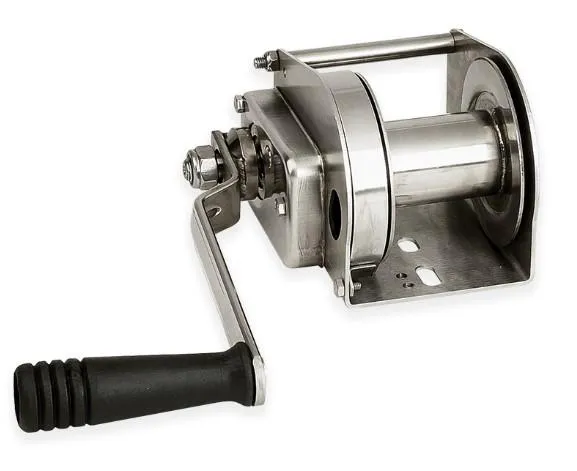

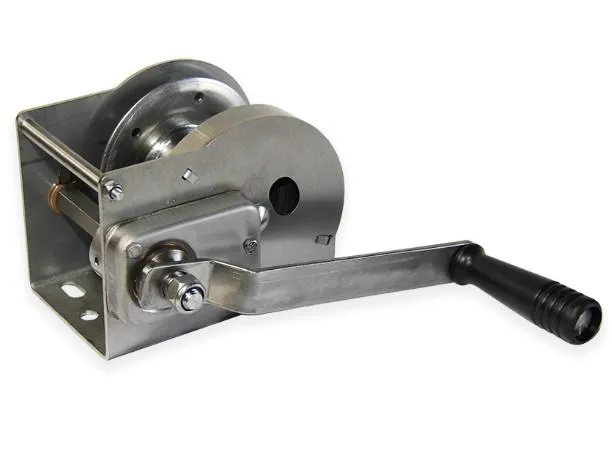

AFID - Goliath Stainless Steel (316L) Hand Winch
Lifting capacity 190 kg to 900 kg
Stainless Steel 316L material, ideal for marine and other outdoor applications in corrosive environments.
Can be installed as a column or base mounted winch, or can wall mounted when purchased with . (note winch plate is zinc plated finish only)
Lightweight
Smooth running and high efficiency through spur gearing
Automatic load pressure brake
Stamped gears with gear protection
Complies with BS EN 13157

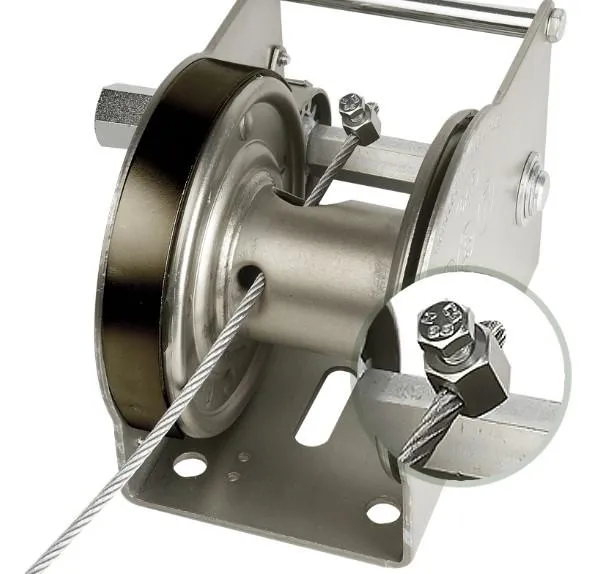

For use with wire rope (available as extra cost option - [email protected])
Haulage load capacity based on 20% incline
Minimum load for the brake to function = 10kg
Spec
| Type | GO-4AFMID-190 | GO-4AFID-340 | GO-6AFID-500 | GO-8AFID-650 | GO-12AFID-900 | |
| Order Code | 151-5-1 | 151-5-2 | 151-5-3 | 151-5-4 | 151-5-5 | |
| Lifting Capacity 1st Layer: | KG | 190 Kg | 340 Kg | 500 Kg | 650 Kg | 900 Kg |
| Lifting Capacity Last Layer: | KG | 80 Kg | 190 Kg | 240 Kg | 270 Kg | 490 Kg |
| Haulage Capacity: | KG | 350 Kg | 500 Kg | 750 Kg | 900 Kg | 1500 Kg |
| Rope Capacity 1st Layer: | M | 1 m | 2 m | 2 m | 2 m | 2 m |
| Rope Capacity Total: | M | 8 m | 10 m | 12 m | 19 m | 12 m |
| Rope Diameter: | MM | 3 mm | 4 mm | 5 mm | 6 mm | 7 mm |
| No. of Layers: | N/A | 8 | 4 | 5 | 7 | 5 |
| Ratio: | N/A | 2.57:1 | 2.57:1 | 3.5:1 | 4.85:1 | 9.71:1 |
| Required Effort: | N/A | 15 N | 24 N | 24 N | 23 N | 25 N |
| Weight: | KG | 2.2 | 2.8 | 4.4 | 5.2 | 7.6 |
**As Standard supplied without Wire Rope or Webbing - Prices available on request**
